您現在的位置:E-TEC BGA測試插座
- Twist Lock IC Development Sockets
|
請聯系本公司并提供BGA芯片封裝圖以便確保BGA插座與BGA芯片的一致性
|

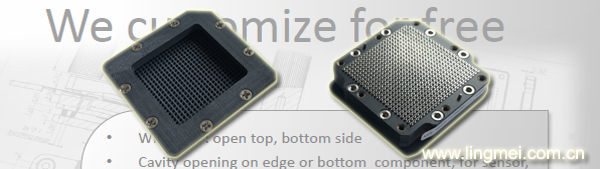

Twist Lock IC Development
Sockets - Over View |
-
Development socket
-
SMT, thru hole or compression mount
-
Bandwidths up to 3GHz (SMT)
-
Bandwidths over 10GHz (compression mount)
-
Integrated aluminum heatsink available
-
Lid opening allows for failure analysis/probing
-
Lid opening allows for optical IC development
-
Low profile and mounts in IC's footprint (SMT
mount)
-
Pitches down to 0.5mm (SMT and thru hole mounts)
or 0.4mm (compression mount)
-
Any grid
|
 Twist-Lock
Type BGA Socket Data Sheet |
|
MECHANICAL
DATA |
|
Contact life:
|
10,000 cycles min. |
|
Retention System
life: |
1,000 cycles min. |
|
Solderability :
|
Exceeds MIL-STD-202 Method
208 |
|
Individual contact
force: |
40 grams max. |
|
Max. torque for
retention
screws: |
up to 800 pins = 7cNm or 10
oz-inch
as of 800 pins = 7cNm to 10cNm or 10 oz to
14 oz-inch |
|
|
MATERIAL |
|
Insulator (RoHS
Compliant): |
High temp plastic or epoxy
FR4 |
|
Terminal (RoHS
compliant): |
Brass |
|
Contact (RoHS
compliant): |
BeCu |
|
|
ELECTRICAL
DATA |
|
Contact resistance: |
< 100 mΩ |
|
Current rating: |
500 mA max. |
|
Insulation
resistance: |
at 500V DC 100 MΩ if 0.50
to 0.80mm pitch
500 MΩ 1.00mm pitch
upwards |
|
Breakdown voltage: |
at 60 Hz 500V min. |
|
Capacitance: |
< 1 pF |
|
Inductance: |
< 2 nH |
|
Operating
temperature: |
-55°C to +125°C ; 260°C for
60 sec. |
|
These
sockets are available for almost any IC
package style, size, lead-count and
lead-pitch down to 0.5mm pitch: BGA, MLF/QFN,
uBGA, SOIC, QFP and also custom packages or
die. Furthermore, these sockets provide
flexibility in the PCB mounting method: SMT,
raised SMT, through-hole, or compression
mount.
- SMT (pin
type -30) uses a standard reflow process
to mount the sockets to the target PCB.
These sockets mount in the same
footprint as the IC, but typically
require a mimimum clearance of 6mm
betyond the package's periphery. In
situations where adjacent components lie
in this area, either the socket body can
be modified to clear the components, or
a special raised SMT (pin types
-28 or -29) pin can be used in place of
the standard SMT pin. These pins raise
the socket body from 2-5mm above the
PCB. Although this method does not
require any drilled holes in the target
PCB, it is highly recommended to provide
two such plated holes in order to
accomodate mounting pegs and greatly
strengthen the physical connection
between the socket and PCB.
Alternatively, epoxy can be used to
strengthen the connection, but this more
or less creates a permanent bond between
the socket and PCB.
- Through-hole
(pin type -70) requires plated holes to
be drilled in the PCB into which the
pins of the socket will be soldered.
This provides for a very robust and
reliable electrical and mechancial
connection. However, the electrical
performance is reduced due to the longer
pin lengths. This method is highly
suitable for burn-in applications.
- Compression
(pin type -90) mount removes the need
for any soldering and just requires the
socket to be held to the PCB via screws.
The benefit of this method is that it
allows the customer to easily attach the
socket to the target board in the lab,
without the extra cost, lead-time, and
potential problems caused by sending the
board to an assembly house. However,
this method requires that the target PCB
has mounting holes drilled to accomodate
the mounting screws and socket body
alignment posts. Furthermore, depending
on the size of the IC, the PCB
thickness, etc., a backing plate is
required to provide rigidity and ensure
the socket pins contact the PCB pads.
This plate can usually be modified to
accomodate any backside compononents.
 |
 |
 |
|
SMT (-28,
-29, -30) |
Through-Hole (-70) |
Compression (-90) |
SOCKET BODY VERTICAL OFFSET
The following table shows
the vertical clearance of the socket body
from the PCB. This is only applicable to the
SMT mounting style. In situations where the
clearance is insufficient, or the standard
SMT pin is preferred, it is possible to
modify the socket body to accomodate for
adjacent components.
|
Pitch |
Vertical Offset Using Special Raised
SMT
(-28)
|
Vertical Offset Using Raised SMT
(-29)
|
Vertical Offset Using Standard SMT
(-30)
|
|
0.50-0.75
|
N/A |
2.3 |
0.4 |
|
0.8 |
4.5 |
2.8 |
0.6 |
|
1.00 |
4.5 |
3.2 |
0.8 |
|
1.27 |
N/A |
5.0 |
1.2 |
Dimensions in mm
FEATURES & BENEFITS
- Easily exchange
ICs in your system
- High bandwidth:
3GHz @ -1dB
- Available for any
IC package style: BGA, uBGA, CSP, QFN/MLF,
LGA, PGA, SOIC, QFP, custom or die
- Any lead count,
grid and package size
- Minimum 0.5mm
lead pitch
- Maximum 40g force
per contact
- Mounts to same
PCB footprint as the IC (no holes
required for SMT version)
- Low profile:
<10mm high with IC
- Minimal keepout
area: approx. 6mm beyond ICs periphery
- Raised SMT
version available for lifting socket
over adjacent components
- Heat dissipation
via lid cut-out or integrated heatsink
- Thermal
expansion, shock & vibration absorbed by
contact design
- LGA contact
design can also be used for
board-to-board connections
- Standard-process
design & manufacturing = lower cost and
tailored to your needs
|
|
|
