您現在的位置:E-TEC BGA/LGA/CGATest and Burn-In Socket (BGA/LGA/CGA高頻測試座,老化測試座)
|

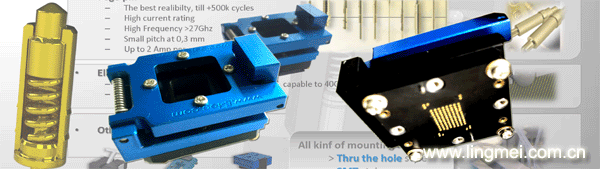

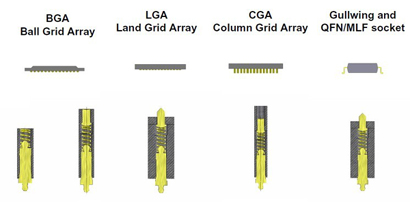

BGA/LGA/CGA/QFN/QFP高頻測試插座產品分球形出腳(SMT)和針形出腳及接觸式三種設計.球形出腳的BGA插座系統主要適用于芯片的測試及開發等.該插座系統的特點是不用在PCB板上開孔,BGA插座的焊接方法和BGA芯片的焊接方法完全一樣.同時如果在客戶的目標板上BGA
Pad旁邊如果已經存在一些貼片器件而影響到BGA插座的安裝,我們亦提供BGA插座的升高設計以便滿足客戶的實際要求.部分BGA插座貨期更短至2-3周。并可根據客戶的BGA器件出腳，定制合適的BGA插座(Available
for any chip size and grid pattern)。
-
適合任何封裝之芯片.
-
自感系數:小于 2nH
-
支持頻率：正常不大于3Ghz,特殊為10Ghz,30Ghz
-
適合任何芯片尺寸及球陣分布.
-
超小尺寸設計
-
出腳方式靈活：球型出腳, 針型出腳,接觸式設計免焊接.
-
彈簧針設計,避免對球體造成傷害.
-
同時兼容BGA/LGA芯片測試.
-
支持常溫,老化,低頻,高頻測試.
-
提供BGA插座的升高設計以便滿足客戶的實際要求.
-

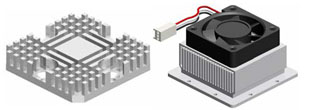

可加裝散熱器或風扇.
 |
 |
 |
| Open Clameshell Type | ClamShell 'Injection mode' Type | Fast Lock |
 |
 |
 |
| Twist Lock | Clamshell | Solderless Compression Type |
 |
 |
 |
| Elastomer Socket | Quick Lock | QFN / MLF / MLP Socket |
 |
 |
 |
| QFP/PQFP/SOIC/SO etc | ClamShell 'Economy' Type | Sockets with SMT solderball adapters |
 |
 |
|
| BGA Adapters |
BGA Socket
Accessories & Spcecial Features BGA測試插座配件 |
|
 |
||
|

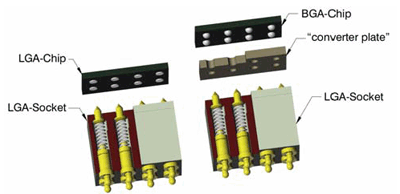

LGA to BGA converter plates For applications where a chip is tested with & without solderballs the LGA sockets can be delivered with a converter plate to allow socketing BGA chips with an LGA socket. |
||
-
如何選擇適合的測試插座(How
to choose a Socket)
-
E-tec Presentation - BGA
-
IC_BGA sockets - top view
dimensions
-
IC_BGA - BGA socket summary
-
IC_BGA - Recommended reflow
profile
-
IC_BGA - Socket Mounting
Recommendations
-
IC_BGA
adapter - solderball sockets
-
IC_BGA test report - 0.80 mm
pitch BGA sockets
-
IC_BGA test report - 1.00mm
pitch BGA sockets
-
IC_General specifications
-
E-tec / Sempac Alliance for
Prototyping sockets & chip packages
常用BGA腳位圖(BGA / LGA / CGA
/ QFP / CQFP Package)
| Package | Socket Type | Part Number | Mechanical Drawing |
|---|---|---|---|
| BGA100,0.65mm Pitch | Clameshell,接觸式 | BUC100-0690-10AA55L | BUC100-0690-10AA55L.pdf |
| CQFP48,0.5mm Pitch | Clameshell,插針式 | QFM048-1070-12AB95 | QFM048-1070-12AB95.pdf |
| CQFP100,0.5mm Pitch | Clameshell,插針式 | QFM100-0570-25AA95 | QFM100-0570-25AA95.pdf |
| CQFP100,0.5mm Pitch | Clameshell,接觸式 | QFM100-0591-25AA95 | QFM100-0591-25AA55L.pdf |
| BGA100,0.65mm Pitch | Twist Lock,接觸式 | BUP100-0690-10AL55L | BUP100-0690-10AL55L.pdf |
| BGA132,1.27mm Pitch | Fast Lock,針型出腳 | BPF132-1270-14AA95 | BPF132-1270-14AA95.pdf |
| BGA169 0.5mm Pitch | Fast Lock,接觸式 | BPF169-0530-13AA95L | BPF169-0530-13AA95L.pdf |
| BGA256,1.0mm Pitch | Fast Lock,針型出腳 | BPF256-1070-20AA95 | BPF256-1070-20AA95.pdf |
| BGA256,0.8mm Pitch | Fast Lock,Elastomer類型 | EBF256-0891-16AA55L | EBF256-0891-16AA55L.pdf |
| BGA352,1.27mm Pitch | Fast Lock,針型出腳 | BPF352-1270-26AB95 | BPF352-1270-26AB95.pdf |
| BGA353,1.27mm Pitch | Fast Lock,接觸式 | BPF353-1229-23AA95+L | BPF353-1229-23AA95+L.pdf |
| BGA360,1.27mm Pitch | Fast Lock,針型出腳 | BCF360-1270-19AA95 | BCF360-1270-19AA95.pdf |
| LGA360,1.27mm Pitch | Fast Lock,針型出腳 | LCF360-1270-19AA95 | LCF360-1270-19AA95.pdf |
| BGA361,1.27mm Pitch | Fast Lock,接觸式 | BPF361-1290-19AA55L | BPF361-1290-19AA55L.pdf |
| BGA360,1.0mm Pitch | Twist Lock,接觸式,升高設計 | BPW360-1029-22AC95+L | BPW360-1029-22AC95+L.pdf |
| BGA393,0.5mm Pitch | Twist Lock,接觸式 | BUP393-0590-29AA55L | BUP393-0590-29AA55L.pdf |
| BGA393,0.5mm Pitch | Fast Lock,接觸式 | BUB393-0590-29AL55L | BUB393-0590-29AL55L.pdf |
| LGA429,1.27mm Pitch | Fast Lock,針型出腳 | LPF429-1270-21AB95 | LPF429-1270-21AB95.pdf |
| BGA441,0.8mm Pitch | Twist Lock,球型出腳 | BUW441-0830-23AL95+L | BUW441-0830-23AL95+L.pdf |
| BGA480,1.27mm Pitch | Twist Lock,接觸式 | BPW480-1290-29AL55L | BPW480-1290-29AL55L.pdf |
| BGA480,1.27mm Pitch | Clameshell,接觸式 | BCC480-1290-29AA55L | BCC480-1290-29AA55L.pdf |
| BGA484,1.27mm Pitch | Fast Lock,接觸式 | BCF484-1290-22AAA55L | BCF484-1290-22AAA55L.pdf |
| BGA532,0.8mm Pitch | Clameshell,球型出腳 | BPC532-0830-26AA95+L | BPC532-0830-26AA95+L.pdf |
| CGA560,1.27mm Pitch | Fast Lock,球型出腳 | CCF560-1230-33AB95+L | CCF560-1230-33AB95+L.pdf |
| BGA560,1.27mm Pitch | Fast Lock,球型出腳 | BPF560-1230-33AB95+L | BPF560-1230-33AB95+L.pdf |
| BGA576,1.0mm Pitch | E-Clameshell,接觸式 | BPE0576-10-09542-24AAA-L | BPE0576-10-09542-24AAA-L.pdf |
| BGA576,1.0mm Pitch | Fast Lock,接觸式 | BPF0576-10-09542-24AAA-L | BPF0576-10-09542-24AAA-L.pdf |
| BGA676,1.0mm Pitch | Clameshell,球型出腳 | BPC676-1030-26AA95+L | BPC676-1030-26AA95+L.pdf |
| BGA697,1.0mm Pitch | Fast Lock,球型出腳 | BPF697-0830-29AA95+L | BPF697-0830-29AA95+L.pdf |
| BGA697,1.0mm Pitch | Fast Lock,球型出腳,升高設計 | BPF697-0829-29AA95+L | BPF697-0829-29AA95+L.pdf |
| CGA717,1.27mm Pitch | Twist Lock,球型出腳 | CCW717-1230-27AA95+L | CCW717-1230-27AA95+L.pdf |
| CGA717,1.27mm Pitch | Twist Lock,針型出腳 | CCW717-1270-27AA95 | CCW717-1270-27AA95.pdf |
| CGA717,1.27mm Pitch | FastLock,接觸式 | CPF717-1290-27AA55L | CPF717-1290-27AA55L.pdf |
| CGA1144,1.0mm Pitch | FastLock,針型出腳 | CPF1144-1070-34AA95 | CPF1144-1070-34AA95.pdf |
| CGA1509,1.0mm Pitch | FastLock,針型出腳 | CPF1509-1070-39AA95 | CPF1509-1070-39AA95.pdf |
| BGA896,1.0mm Pitch | FastLock,插針出腳,帶散熱片 | BPF896-1070-30AA95H | BPF896-1070-30AA95H.pdf |
| BGA896,1.0mm Pitch | Clameshell,插針出腳,帶散熱器 | BPE896-1070-30AA95H | BPE896-1070-30AA95H.pdf |
| BGA1121,1.0mm Pitch | Fast Lock,針型出腳,升高設計 | BUF1121-1029-39AA95H+L | BUF1121-1029-39AA95H+L.pdf |
| BGA1121,1.0mm Pitch | Clameshell,插針出腳 | LPE1121-1070-39AB95C | LPE1121-1070-39AB95C.pdf |
| BGA1517,1.0mm Pitch | FastLock,球型出腳 | BPF1517-1030-39AA95+L | BPF1517-1030-39AA95+L.pdf |
|
